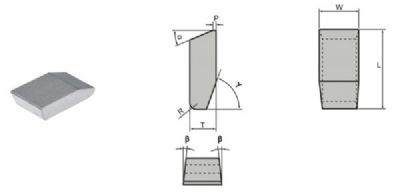

European series

× W × T (mm)
α°
β°
L
 W
T
5.0
1.8 2.2 2.4 2.8 3.2 3.5 4.0
1.5
28
45
0
5.5
2.0 2.3 2.8 3.4 5.5
1.5
20
75
0
6.0
2.3 2.5 2.7 3.0 5.0
1.8
20
65
4
6.0
2.0 2.4 2.6 2.8 3.0 3.2 3.5 3.8 4.5 5.0
1.8
28
45
0
6.0
2.4 2.6 2.8 3.2 3.4 3.6 4.0 5.0
2.0
28
45
0
6.5
1.9 2.2 2.7 3.3 6.5
1.6
28
70
5
6.5
2.6 3.0 3.2 3.4 3.5 3.8 4.0 4.2 6.0
2.0
30
65
5
6.5
2.2 2.4 2.6 2.8 3.2 3.3 3.5 3.7 3.8 6.0
2.0
28
56
0
6.5
2.2 2.3 2.5 2.8 3.0 3.1 3.2 3.3 3.6 4.3 4.5 5.3 6.0
2.0
28
56
5
7.0
2.0 2.3 2.5 2.7 3.2 3.3 3.6 3.8 4.4 6.0
2.0
28
70
5
7.0
3.0 3.3 3.6 3.8 4.0 4.2 4.6 5.0
2.2
28
70
5
7.0
2.8 3.0 3.2 3.4 3.7 4.0 6.5 7.0
2.3
20
76
0
7.5
2.0 2.2 2.4 2.5 2.8 3.0 3.2 3.4 3.6 3.8 4.0
2.0
28
70
5
7.5
 4.2 4.4 4.5 5.2 6.0
2.5
28
70
5
7.5
2.8 3.2 3.5 3.7 4.5 5.0 5.6 6.0 6.5
2.4
30
50
0
8.0
2.4 2.8 2.9 3.0 3.1 3.2 3.3 3.4 3.5 3.6 3.8 3.9 4.0
2.3
28
70
5

4.3 4.4 4.5 4.8 5.0 5.2 5.5 6.0 6.8 8.0




8.0
2.8 3.0 3.3 3.5 3.8 4.1 4.2 4.6 5.0 5.2 5.5 10.0
2.5
28
70
5
8.0
3.6 4.1 4.3 4.6 4.8 5.0 5.1 5.5 6.0
3.0
25
45
0
8.5
2.8 3.0 3.3 3.4 3.5 3.6 3.8 4.1 4.2 4.3 4.6 5.0 6.0
2.5
28
70
5
9.0
3.6 4.3 4.5 5.2 5.5
2.7
28
45
5
9.0
3.1 3.3 3.5 3.6 3.8 4.3 4.5 4.7 5.2 5.5 5.8 6.0
2.7
28
70
5
10.0
3.4 3.5 4.3 6.5
2.5
20
68
0
10.0
3.5 3.7 3.9 4.0 4.3 4.5 4.7 5.0 5.5 6.0
2.8
28
70
5

6.5 7.0 7.5 10.0




10.0
3.5 3.8 4.3 4.5 4.7 4.8 5.0 5.3 5.4 5.5 6
3.0
15
72
0
 For other sizes and types, please contact our sales managers
