| Mechanically Clamped Inserts |
|
|
|
|
|
|

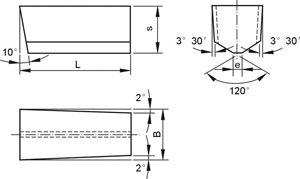

Type | Dimension(mm) | Approx unit weight(g) | B | s | L | e | YG6 | YG8 | YT5 | YT14 | J112 | 3.5 | 3.0 | 12.3 | 0.5 | 1.6 | 1.5 | 1.4 | 1.2 | J112A | 4.5 | 4.0 | 12.3 | 0.5 | 2.9 | 2.8 | 2.5 | 2.2 | J114 | 5.5 | 5.0 | 14.3 | 1.0 | 5.3 | 5.1 | 4.5 | 4.0 | J114A | 6.5 | 6.0 | 14.3 | 1.0 | 7.6 | 7.4 | 6.5 | 5.8 |
|
|
